TAKE-OFF
Count Every Device on the Drawings.
Then Check Your Tender.
Bring the tender's drawings into SecurityEdge Studio, box one symbol and let the app find the rest. Every find is a mark you confirm, and the count is checked against the quantities in your tender before it goes out.
20
drawings a tender
8
poses searched: turned and mirrored
1
click to confirm them all
1 · YOUR DRAWINGS
Every drawing of the tender in one place

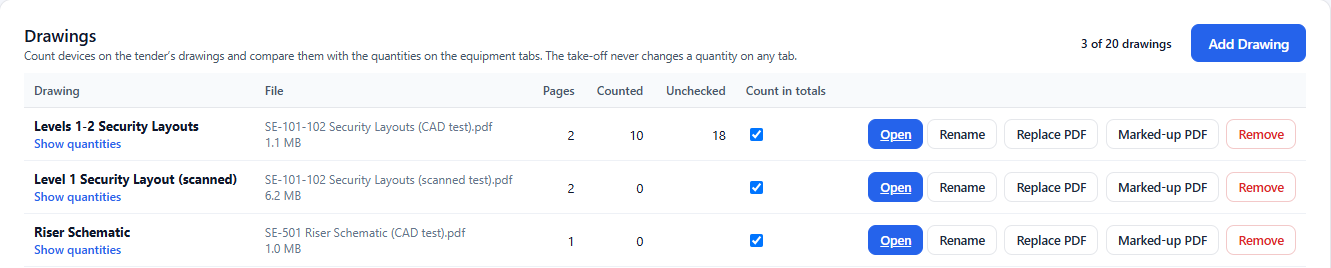

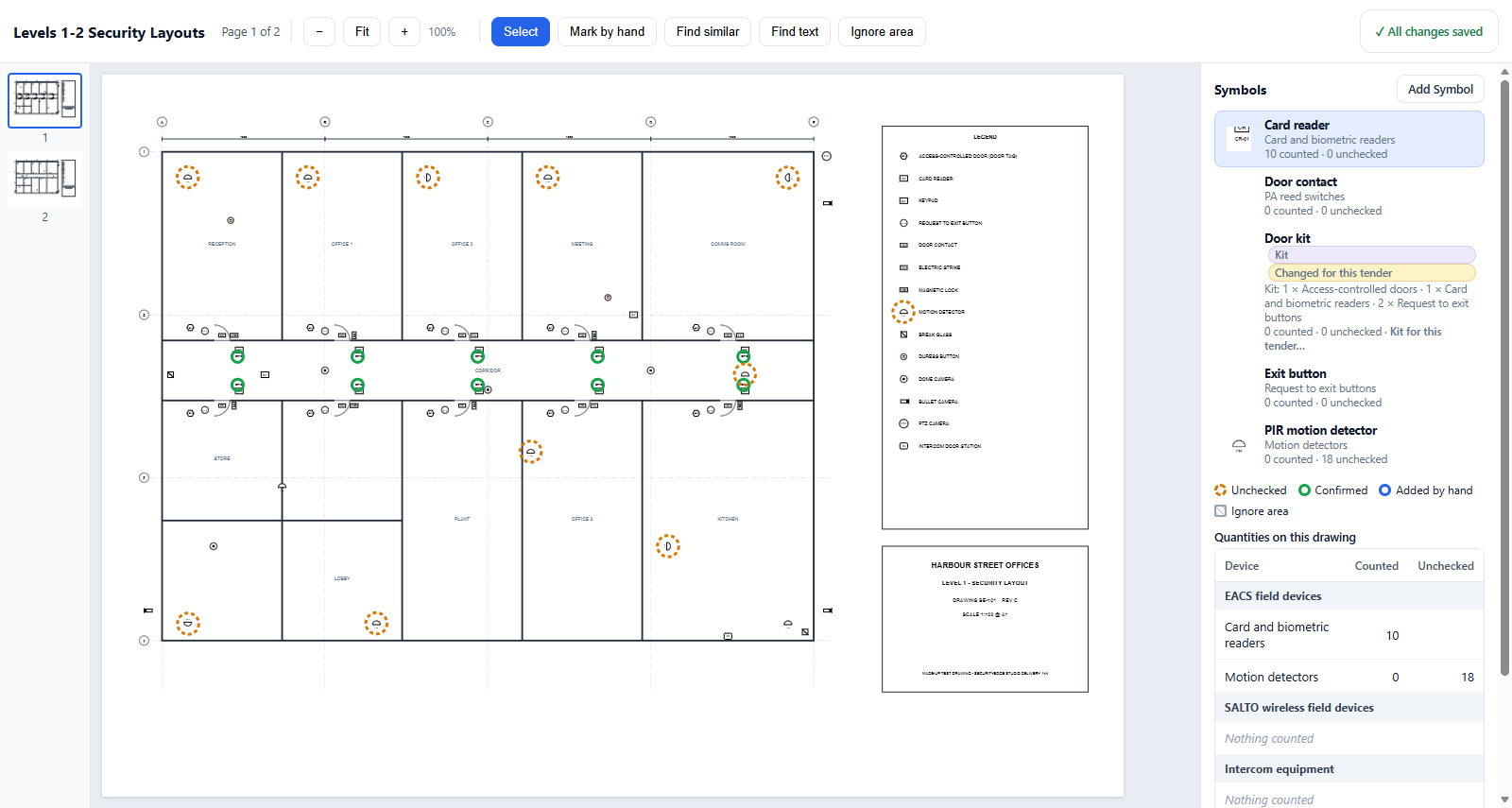

Upload the PDF drawings - CAD plots or scans - and open any page in the drawing window to zoom, mark and count.
✓ Up to 20 drawings a tender
✓ Rename, replace a PDF with its new revision, or leave a drawing out of the totals
2 · FIND SIMILAR
Box one card reader. Find them all.

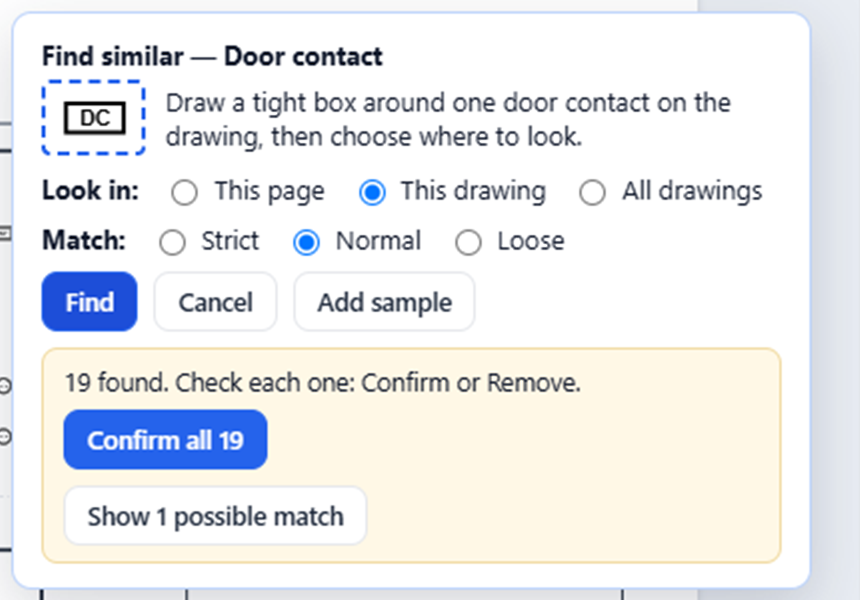

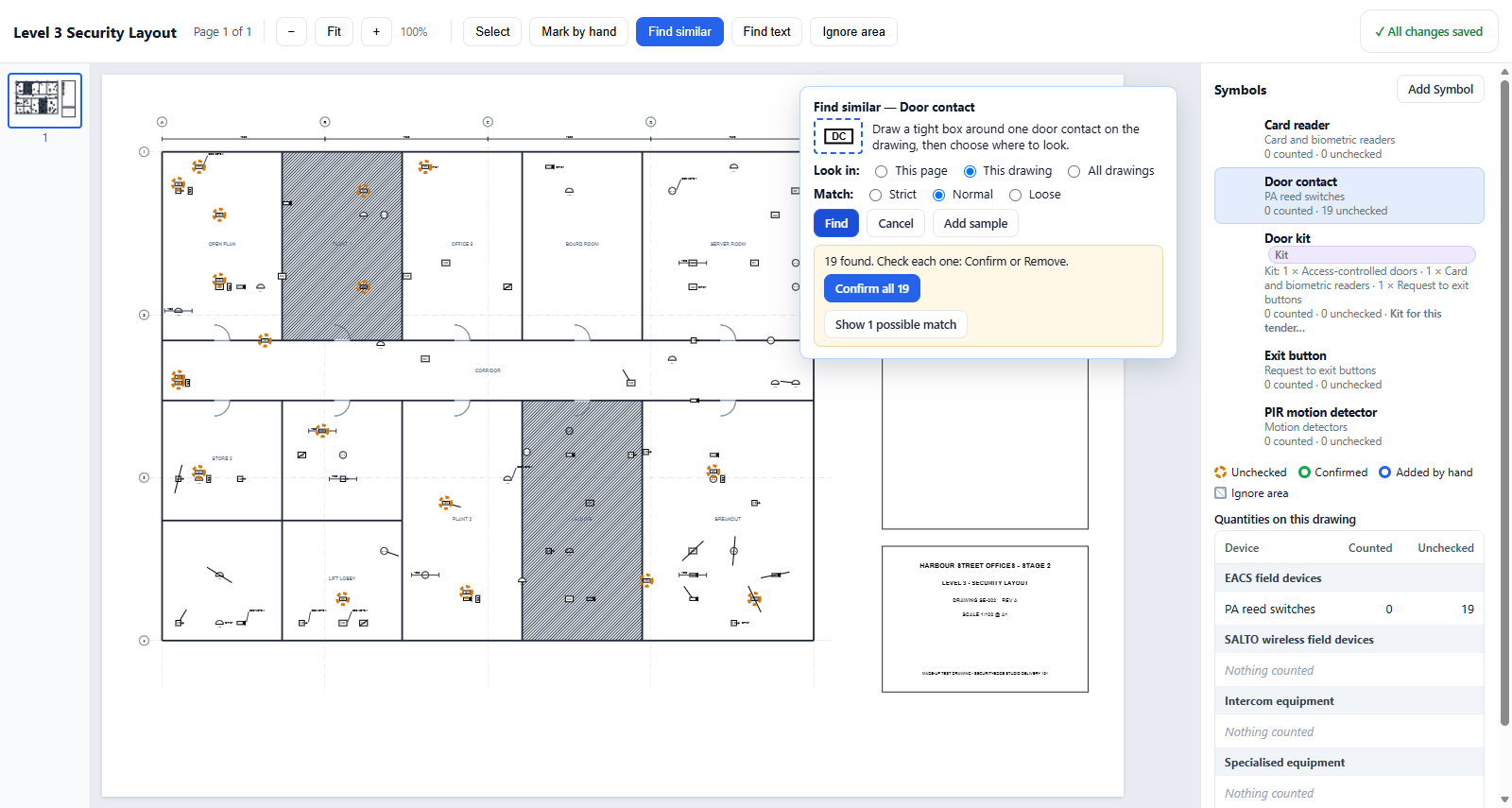

Draw a box round one symbol and the app looks for its own lines across the drawing - or every drawing of the tender.
✓ Finds copies turned, mirrored, or drawn with a heavier or finer pen
✓ A wall, a cable or a label touching a device no longer hides it
✓ Match: Strict, Normal or Loose - and near-misses offered for you to check
✓ Or search the drawing's text for a label such as CR-
3 · KITS
One symbol, the whole door

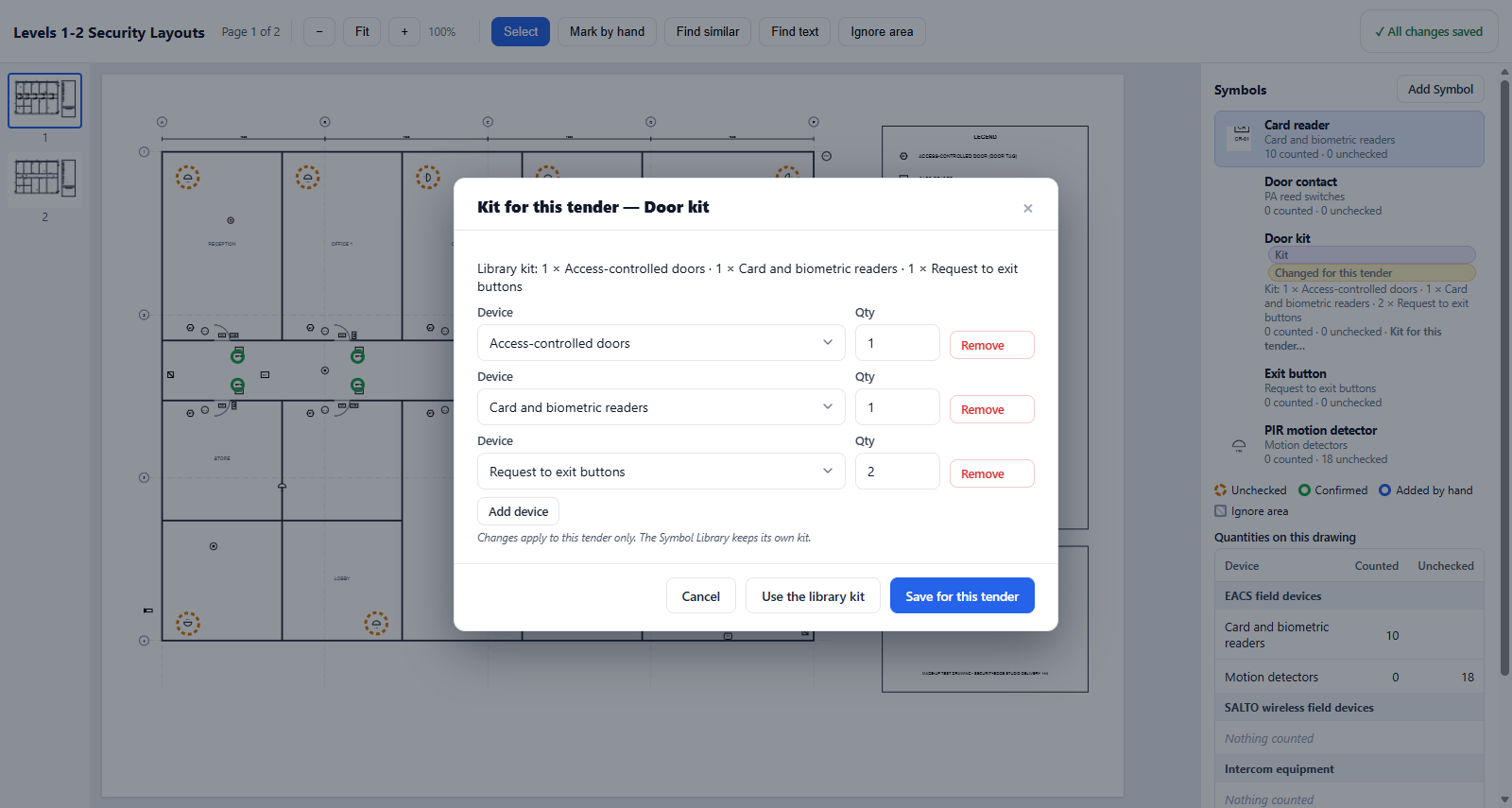

A symbol can count as one device, or as a kit of several - for example a door's reader and exit button together - so one mark counts them all.
✓ Your company's symbol library, ready for every tender
✓ Change a kit for one tender only, without touching the library
4 · CHECK YOUR TENDER
The drawings and the tender, side by side

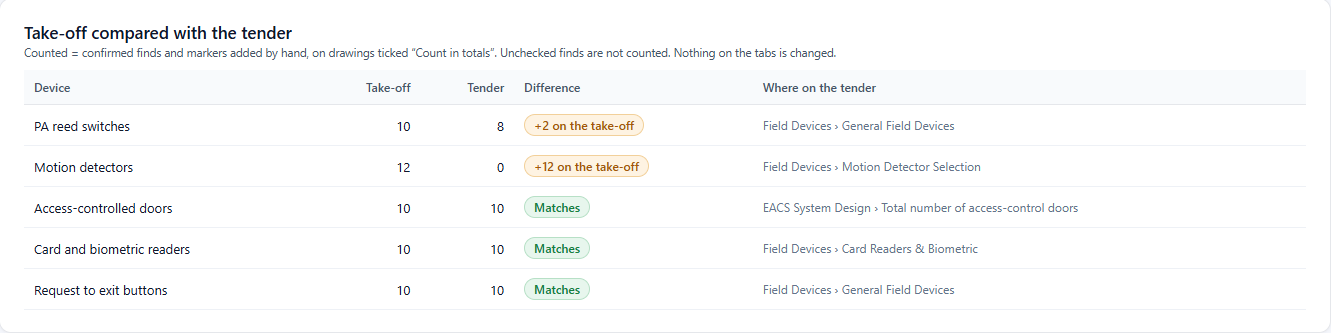

The Take-Off tab compares what was counted on the drawings with the quantities on your equipment tabs, and flags every difference before you submit.
✓ The Take-Off Advisory also appears in Tender Risk Scoring and the Management Report
✓ It never changes a quantity for you - you decide
5 · MARKED-UP PDF
Hand over drawings with every device marked
Export any drawing as a marked-up PDF - the drawing with its counted devices marked and a table of what was counted on it, ready to file or send.
Count faster. Price with confidence.
See the Take-Off in a live demo - from the first drawing to a checked tender.
